If you're passionate about building your own electronics, understanding how to design and assemble printed circuit boards (PCBs)is a crucial skill. A well-designed PCB is essential to the success of any functional circuit, whether you're making a simple LED blink or building a complex microcontroller-based project. Designing and assembling a PCB allows you to create custom, reliable, and efficient circuits tailored to your exact needs, rather than relying on off-the-shelf solutions. This guide will walk you through the entire process, from the basics of PCB design to the step-by-step assembly, helping you master the craft of creating your own PCBs for DIY electronics.

Getting Started with PCB Design for DIY Electronics Projects

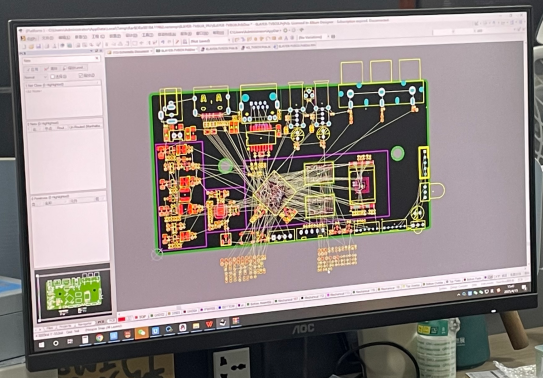

PCB design starts with understanding the components that make up the circuit and how they’ll be connected. PCB design refers to creating the layout of an electronic circuit board, including the placement of components and the paths that will carry electrical signals between them. Every PCB is essentially a map of how your electronic parts will interact with one another.

Essential Tools for PCB Design: To begin designing, you’ll need PCB design software. Popular options include KiCad (free), Eagle, and Altium Designer. These programs allow you to draw schematics, which represent the electrical connections of your components, and then convert them into a physical layout. For the physical design work, you'll also need a computer and some technical knowledge to navigate the software.

Key Concepts in PCB Design: In PCB design, schematic design is the first step. You’ll choose components (such as resistors, capacitors, or ICs) and draw lines connecting them to indicate how the components should be wired together. After that, you’ll create the PCB layout, which is where the physical positioning of components and routing of electrical traces occurs. Think of the schematic as a map, and the layout as the actual construction plan.

Design Rules and Best Practices: When designing a PCB, it’s essential to follow some basic design principles. For example, traces (the conductive paths) must be wide enough to carry the necessary current without overheating, and there must be sufficient spacing between traces to prevent short circuits. Power and ground planes are also critical: these layers ensure clean power delivery and reduce electrical noise. Signal integrity is another key concern, especially in high-speed circuits, where poor trace routing can lead to data errors or signal degradation.



Step-by-Step Process for Designing Your First PCB

Step 1 – Designing the Schematic Diagram

The first step in PCB design is creating a schematic. This is where you draw all the components of your circuit and how they will connect to each other. You’ll need to choose components that fit your project’s needs—such as resistors, capacitors, and microcontrollers—and place them in a logical arrangement. Once you have all your components in place, use the schematic editor in your PCB design software to draw electrical connections between them. The key here is to ensure the connections match the intended flow of current in your circuit.

Step 2 – Converting the Schematic to PCB Layout

After your schematic is complete, it’s time to convert it into a physical PCB layout. This involves placing your components on a digital board and routing the traces that will connect them. Keep the layout as compact as possible while ensuring there’s enough space for each component to fit properly. A good layout will not only ensure electrical functionality but also allow for easy routing of traces. Positioning components near each other based on their function helps minimize trace lengths and potential signal interference.

Step 3 – Routing the PCB

Routing refers to drawing the paths (traces) that electrically connect the components. You can route the traces manually or use the software’s auto-routing feature. However, manual routing is preferred in more complex designs as it allows for better control. Ensure the traces are wide enough to carry current without overheating, and keep the high-speed signal traces as short as possible to reduce signal loss or interference.

Step 4 – Design Rule Check (DRC) and Electrical Rule Check (ERC)

Once you’ve completed the routing, it's time to check for potential errors. PCB design software comes with built-in Design Rule Check (DRC) and Electrical Rule Check (ERC) tools. DRC verifies that your design complies with manufacturing constraints, like minimum trace width and spacing. ERC checks for electrical issues, such as unconnected components or incorrect connections. Running these checks will help you identify errors early in the design process, saving you time and money.

Step 5 – Finalizing and Exporting Gerber Files

After resolving any errors and finalizing your design, you need to prepare the files that will be sent to the PCB manufacturer. These files are called Gerber files and include information like the layout of each layer, component placement, and trace routing. Once exported, these files can be used by PCB manufacturers to fabricate your board.

Understanding PCB Assembly: The Process of Bringing Your Design to Life

What is PCB Assembly?

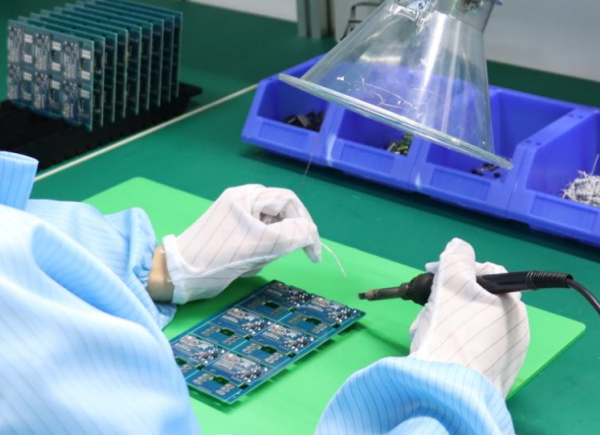

PCB assembly is the process of placing the components onto the PCB and soldering them into place. This can be done by hand for small-scale projects or using automated machines for mass production. For DIY projects, you’ll likely assemble the PCB yourself, which allows for hands-on learning and better control over the final product.

Types of Components Used in PCB Assembly

• Surface-Mount Technology (SMT): SMT components are mounted directly onto the surface of the PCB, making them ideal for small and compact designs. These components are soldered in place using solder paste and a reflow oven, a process that’s fast and efficient.
• Through-Hole Technology (THT): THT components have leads that go through holes in the PCB and are then soldered on the opposite side. These components are typically larger and more durable, often used in high-power or industrial applications.

Tools and Materials Needed for PCB Assembly

For assembling your PCB, you’ll need several tools, including:

• Soldering Iron: Essential for attaching through-hole components and for reworking SMT components.
• Soldering Station: A more advanced soldering setup that includes temperature control for precise soldering.
• Tweezers: Used for handling small components, especially for SMT parts.
• Flux and Solder Paste: Flux helps the solder flow smoothly, while solder paste is used to attach SMT components to the board before heating.

The PCB Assembly Process: A Step-by-Step Guide

Step 1 – Preparing the PCB

Before assembly, clean the PCB to remove any dust or oils that might interfere with soldering. You can use isopropyl alcohol and a lint-free cloth to gently clean the board. Also, inspect the PCB for any visual defects, like scratches or missing pads.

Step 2 – Placing the Components

Start placing the components on the PCB, following the layout you designed. Use tweezers for small components, ensuring they are oriented correctly (e.g., capacitors and diodes must be placed in the right direction). For through-hole components, insert the leads through the holes, and for surface-mount components, apply solder paste and place the parts on the pads.

Step 3 – Soldering the Components

• Through-Hole Soldering: For through-hole components, insert the leads into the board, bend them on the other side, and then solder them in place. Be sure to use a steady hand and avoid applying too much heat, which can damage the components.
• Surface-Mount Soldering: For SMT components, use solder paste to adhere components to the board. Then, use a reflow oven or hot air gun to melt the solder paste and secure the parts.

Step 4 – Inspecting and Testing the PCB

After soldering, carefully inspect the board for any soldering mistakes, such as cold solder joints or bridges between pins. You can use a magnifying glass to examine the joints closely. Then, test the board using a multimeter to check for continuity, ensuring no components are misconnected.

Step 5 – Troubleshooting Common Assembly Issues

If you encounter issues such as a cold solder joint (where the solder didn’t melt correctly), reflow the joint with the soldering iron. If there’s a short circuit, use desoldering braid or a vacuum pump to remove excess solder and correct the problem.

Advanced Tips for Optimizing Your PCB Designs

Signal Integrity Best Practices

For high-speed circuits, maintaining signal integrity is crucial. Use differential pairs for sensitive signals, and route traces as short as possible to reduce electromagnetic interference. You may also want to use ground planes to shield sensitive areas from noise.

Thermal Management in PCB Design

Managing heat is essential for PCBs that carry significant power. Use heat sinks, vias, and thermal pads to dissipate heat away from hot components, preventing overheating and potential damage.

Minimizing PCB Size and Cost

When designing a PCB, try to reduce its size without compromising functionality. Using multi-functional components (such as integrated circuits that handle multiple tasks) can help minimize space and cut costs. Additionally, optimizing component placement and trace routing can save both space and material costs.

Conclusion: Tips for Success and Continuing Your PCB Design and Assembly Journey

Designing and assembling PCBs is a rewarding skill that opens up endless possibilities for DIY electronics projects. By following this step-by-step guide, you'll have the tools and knowledge to create your own functional, custom-designed PCBs. Remember, the key to success in PCB design and assembly is practice and patience. Don't be discouraged by early mistakes; instead, learn from them and keep refining your skills. Continue exploring online resources, tutorials, and PCB design communities to expand your knowledge and stay up-to-date with the latest techniques. Most importantly, enjoy the process of creating and building your own electronic devices, as this hands-on approach will make you a more confident and skilled DIY electronics creator.

FAQs

What’s the difference between surface-mount and through-hole components?

Surface-mount components are soldered directly onto the board's surface, while through-hole components have leads that pass through the board. Surface-mount components are smaller and ideal for compact designs, while through-hole components are more robust and easier to handle for beginners.

How do I choose theright PCB design software for my project?

When choosing PCB design software, consider factors such as ease of use, features, and your budget. For beginners, KiCad is a great free option with a user-friendly interface and ample functionality. Eagle is also a popular choice for hobbyists and offers a free version for smaller projects. If you're looking for advanced features and professional-grade design tools, Altium Designer is a paid software that provides robust capabilities, but it can be overkill for simple projects.

What are the common mistakes beginners make in PCB assembly, and how can I avoid them?

Common mistakes include cold solder joints, incorrect component placement, and overheating components. To avoid these issues, make sure to use the correct soldering techniques, inspect your work with a magnifying glass, and double-check component orientation before soldering. It's also helpful to practice soldering on scrap boards before working on your final design.

How do I test a PCB after assembly?

After assembling the PCB, you can test it by checking for continuity with a multimeter to ensure all connections are correct. You can also check each component's functionality by testing it individually, such as measuring voltage across a component to ensure it is operating within its expected range. If the circuit isn't functioning, trace back through your design to identify any soldering issues, incorrect component placement, or broken traces.

Can I assemble a PCB without a soldering iron?

Yes, you can use alternative methods like solder paste and a reflow oven for surface-mount components. However, for through-hole components, a soldering iron is typically necessary. Some advanced techniques, like conductive adhesive or laser soldering, can be used in specialized setups, but for DIY projects, a soldering iron remains the most reliable and practical tool.
