If you’re diving into the world of electronics and want to create your own circuit boards, you've come to the right place. Today, we’re going to break down the basics of PCB (Printed Circuit Board) design. Don’t worry, we’ll keep things simple, step-by-step. So, whether you're an absolute beginner or just need a refresher, these are the essential PCB design rules you’ll need to follow.

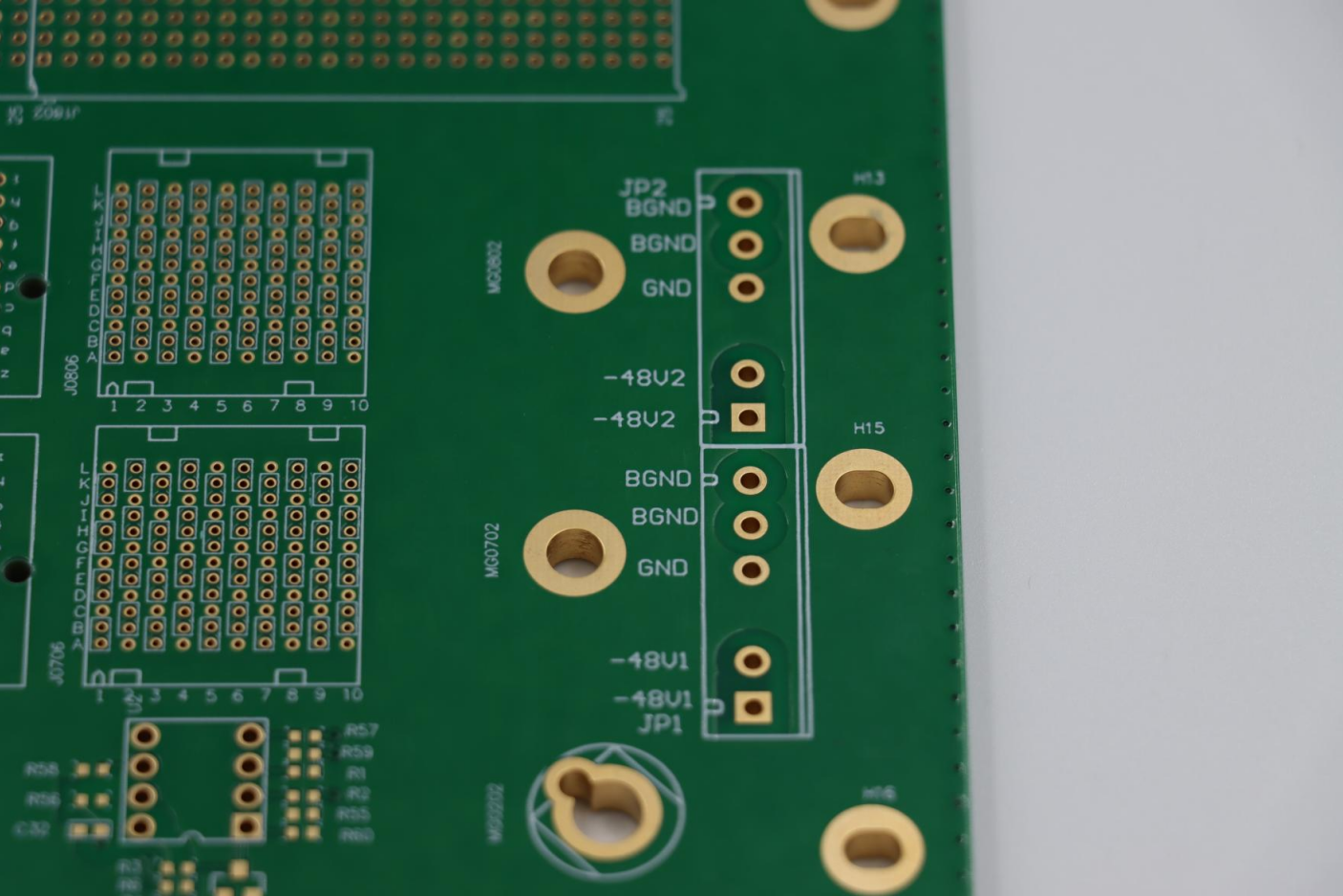

What is a PCB?

Before we get into the rules, let’s quickly talk about what a PCB actually is. A PCB is the backbone of most electronic devices. It's the board that holds and connects all the components like resistors, capacitors, and chips. It’s essentially a "highway" for electrical signals to flow through your device.

Rule 1: Keep Trace Widths Proper

What is a trace?

 A trace is the copper path on your PCB that carries electricity between components. Think of it like a wire, but flat on the board.

Why it’s important:

 If the trace is too narrow, it can overheat or even burn out. If it's too wide, you’re wasting space and materials.

How to do it:

 To calculate the right trace width, you need to know the amount of current (the flow of electricity) that will pass through it. There are online calculators that help you with this, like IPC-2221 standards. But as a general rule, try to match your trace width to the current it will carry, using a standard PCB trace width guide.

Rule 2: Maintain Proper Spacing Between Traces

Why spacing matters:

 If two traces are too close together, they might short-circuit (where electricity flows where it shouldn’t). On the other hand, too much space wastes precious board area.

How to do it:

 The spacing between traces depends on the voltage and current they carry. A good rule of thumb is to use at least 6 mils (thousandths of an inch) between traces. Always check the specs of your PCB manufacturer for their recommended spacing.

Rule 3: Place Components Smartly

Why placement matters:

 Component placement affects everything from the ease of routing your traces to how well your circuit performs. If you place parts randomly, you’ll find it harder to route the traces cleanly and efficiently.

How to do it:

 Start by grouping components that are electrically connected near each other. For example, keep capacitors close to power pins and ICs (integrated circuits). Try to place components logically, as if they’re following the flow of electricity through the circuit.

Rule 4: Use Ground and Power Planes

What’s a power plane?

 A power plane is a large copper area on your PCB dedicated to carrying power to various components. Similarly, a ground plane carries the return current (electricity that flows back to the power source).

Why it’s important:

 Using planes for power and ground minimizes the chance of noisy signals or voltage drops. They also help with heat dissipation.

How to do it:

 When designing your PCB, dedicate large areas of copper for power and ground, instead of using tiny traces. This will improve the stability and performance of your circuit.

Rule 5: Keep Signals Short and Direct

Why this rule matters:

 Signal integrity is a big deal in PCB design. If signals travel too far or too long, they can pick up noise, causing errors or malfunction.

How to do it:

 Try to route your traces as directly as possible between components. Avoid unnecessary curves, and keep traces as short as possible. This ensures clean signals and saves space on the board.

Rule 6: Add Decoupling Capacitors

What are decoupling capacitors?

 These are small capacitors placed near power pins of sensitive components (like microcontrollers) to smooth out voltage fluctuations and prevent noise.

Why it’s important:

 Without them, your circuit might behave erratically due to power noise or spikes.

How to do it:

 Add a decoupling capacitor (typically 0.1uF to 10uF) as close as possible to the power pins of each IC. This will help ensure stable operation.

Rule 7: Don’t Forget the Silkscreen Layer

What’s a silkscreen?

 This is the layer of ink printed on the surface of the PCB that shows text, labels, and outlines for components.

Why it’s important:

 Having clear markings helps you or anyone assembling the board identify where each component goes. Without a good silkscreen layer, you might have trouble knowing which side is up or where to place parts.

How to do it:

 Use simple and clear labels, such as component designators (like "R1" for resistor 1, "C1" for capacitor 1), and ensure that text isn’t placed over pads (the areas where components are soldered).

Rule 8: Design for Manufacturability

Why it matters:

 It’s easy to get carried away with complex designs, but if you make something too difficult to manufacture, it can lead to expensive or impossible-to-produce PCBs.

How to do it:

 Check with your PCB manufacturer before finalizing your design to make sure your board can be made with the technology they offer. Keep trace widths and component sizes in line with industry standards. Always review the manufacturer's capabilities, such as minimum hole sizes, trace widths, and layer counts.

Rule 9: Test Your Design

Why testing is crucial:

 Before going to production, it’s important to verify your PCB design works as expected. You don't want to spend money building a board that doesn't perform correctly.

How to do it:

 Use PCB design tools like KiCad, Eagle, or Altium to run electrical rule checks (ERC) and design rule checks (DRC). These tools will alert you to common mistakes like unconnected nets, short circuits, or improperly sized traces.

Rule 10: Don’t Be Afraid to Learn From Mistakes

Why this is important:

 No one gets it perfect the first time. PCB design is an iterative process. You might make mistakes, but that’s how you learn and improve.

How to do it:

 After testing, make changes, and then test again. Be patient and keep refining your design until it’s as good as it can be. Over time, you’ll get faster and more accurate with your designs.

Conclusion

PCBs are the heart of most electronic devices, and designing them is both an art and a science. By following these essential design rules, you’ll be able to create functional and reliable PCBs that serve your projects well. Start small, make mistakes, learn from them, and keep improving. PCB design might seem tricky at first, but with practice, it will become second nature. Happy designing!
