Walk into any electronics lab, browse a component distributor's catalog, or join a discussion in a maker forum, and you'll eventually encounter a familiar question: Is a potentiometer the same thing as a variable resistor? The two terms are often used interchangeably, yet they don't always describe the same electrical function. That seemingly minor distinction can affect circuit behavior, measurement accuracy, power dissipation, and even PCB layout decisions.

For hobby projects, the difference may not immediately cause problems. However, in industrial control systems, audio equipment, power electronics, instrumentation, and embedded devices, selecting the wrong component configuration can lead to unstable performance, excessive heat generation, or shortened component life.

Understanding how these adjustable resistive devices work—and when each configuration should be used—is therefore an essential skill for electronics designers, PCB engineers, and hardware developers.

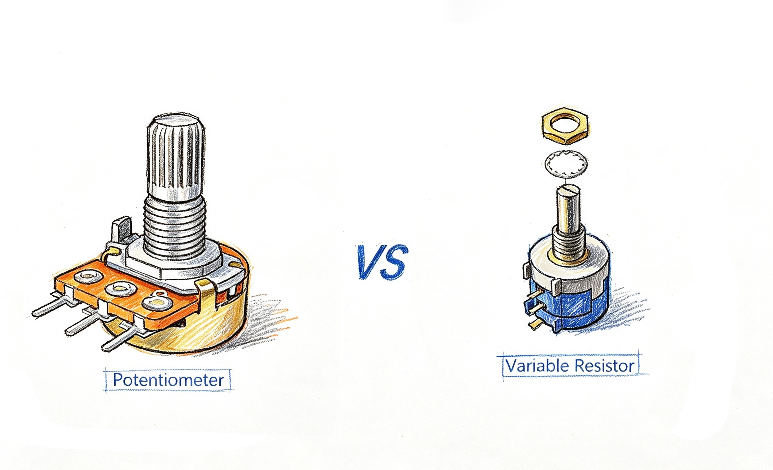

Why Are Potentiometers and Variable Resistors Often Confused?

The confusion begins with the component itself.

A standard potentiometer can operate as either a three-terminal potentiometer or a two-terminal variable resistor. Since both functions use the same physical device, many people assume the terms describe identical components.

They do not.

Instead, the distinction lies in how the component is connected within a circuit.

Think of it this way:

• Potentiometer describes the component when all three terminals are available and used as a voltage divider.
• Variable resistor describes the electrical function when only two terminals are connected to adjust resistance.

In other words, a potentiometer is a type of adjustable resistor, while a variable resistor refers to a specific method of using that adjustable resistor.

This subtle difference becomes much more important once circuit performance enters the picture.

What Is a Potentiometer?

A potentiometer is a that provides an adjustable voltage output through a movable contact known as the >span class="15">wiper.

Its construction typically includes:

• Resistive element
• Sliding or rotating wiper
• Three electrical terminals
• Mechanical adjustment mechanism

The two outer terminals connect to opposite ends of the resistive track, while the center terminal connects to the movable wiper.

As the shaft rotates—or the slider moves—the wiper changes its position along the resistive element, altering the voltage available at the output.

Because of this operating principle, potentiometers are most commonly used as:

• Voltage dividers
• Adjustable reference voltage generators
• Signal level controllers
• User interface controls

Common examples include:

• Audio volume knobs
• LCD contrast adjustment
• Analog sensor calibration
• Industrial control panels
• Laboratory equipment

Rather than dissipating significant power, potentiometers usually process relatively small signal currents.

How Does a Potentiometer Work?

A potentiometer divides an input voltage into two portions.

Imagine applying 5 V across the two outer terminals.

If the wiper sits exactly halfway along the resistive track, the center terminal outputs approximately:

• Upper resistance = 5 kΩ
• Lower resistance = 5 kΩ
• Output voltage ≈ 2.5 V

Move the wiper toward one end, and the output voltage changes proportionally.

This simple voltage divider action makes potentiometers indispensable wherever continuously adjustable analog signals are required.

Unlike fixed resistor networks, they allow designers or users to fine-tune circuit behavior without redesigning the PCB.

What Is a Variable Resistor?

A variable resistor adjusts current flow by changing resistance rather than generating an adjustable voltage.

Although many variable resistors are physically identical to potentiometers, only two terminals are used:

• One outer terminal
• The movable wiper

The unused terminal is typically left unconnected or tied to the wiper for improved reliability.

Instead of splitting voltage, the component simply behaves like an adjustable resistor whose resistance varies continuously as the wiper moves.

This configuration changes circuit current according to Ohm's Law.

Variable resistors are commonly used for:

• LED brightness adjustment
• Motor speed control
• Bias current tuning
• Heating element regulation
• Current limiting
• Power adjustment

Because they may carry considerably higher current than voltage-divider applications, power ratings become much more important.

How Does a Variable Resistor Work?

When configured as a two-terminal device, only the resistance between the selected outer terminal and the wiper matters.

Suppose a 10 kΩ potentiometer is wired as a variable resistor.

As the wiper rotates:

Wiper Position	Resistance
0%	0 Ω
25%	2.5 kΩ
50%	5 kΩ
75%	7.5 kΩ
100%	10 kΩ

The circuit current changes accordingly.

Unlike the voltage-divider configuration, the goal is no longer to obtain a specific voltage but to regulate current or impedance.

This operating mode is often referred to as a rheostat configuration, especially when handling relatively high power.

Potentiometer vs. Variable Resistor: Key Differences

Feature	Potentiometer	Variable Resistor
Number of terminals used	Three	Two
Primary function	Voltage divider	Adjustable resistance
Output	Variable voltage	Variable resistance
Controls	Voltage	Current
Typical power	Low	Low to moderate (depending on design)
Common applications	Audio, sensors, calibration	Motor control, current limiting, LED dimming
PCB connection	Three pads	Two pads (or three with one tied)

The key takeaway is simple:

The same component may function as either device depending entirely on how it is wired.

That explains why component datasheets sometimes describe identical products using different terminology.

Types of Potentiometers

Not all potentiometers share the same mechanical structure.

The most common types include:

Rotary Potentiometers

The familiar knob-operated version found in amplifiers, oscilloscopes, and laboratory instruments.

Advantages include:

• Compact size
• Long service life
• Smooth adjustment
• Wide resistance range

Slide Potentiometers

Frequently seen in:

• Audio mixers
• Lighting consoles
• Industrial operator panels

Their linear movement provides better visual feedback of adjustment position.

Trimmer Potentiometers

Often called trim pots, these miniature components are designed for occasional calibration rather than daily operation.

Typical applications include:

• Offset adjustment
• Sensor calibration
• Gain trimming
• Reference voltage tuning

Because they are adjusted infrequently, they occupy minimal PCB space while providing excellent calibration flexibility.

Digital Potentiometers

Mechanical wipers are increasingly being replaced by digitally controlled resistor arrays.

Digital potentiometers offer:

• Software control
• Repeatable settings
• Remote adjustment
• Automated calibration
• Improved reliability in harsh environments

They are widely used in modern embedded systems and IoT products.

Choosing the Right Component

Selecting the appropriate adjustable resistor depends on several engineering considerations.

Electrical Requirements

Start by defining:

• Required resistance range
• Maximum current
• Operating voltage
• Power dissipation

Higher-current applications often require dedicated rheostats rather than standard signal-level potentiometers.

Resistance Taper

The adjustment curve significantly affects user experience.

Common taper options include:

Linear (B taper)

Best suited for:

• Sensors
• Calibration
• Industrial controls
• Measurement equipment

Logarithmic (A taper)

Commonly used in:

• Audio volume controls
• Human-interface adjustments

The logarithmic response better matches human hearing perception.

Mechanical Lifetime

Applications involving frequent adjustment should prioritize components with high cycle ratings.

Industrial-grade potentiometers often exceed:

• 50,000 rotations
• 100,000 rotations
• Several million adjustment cycles for specialized designs

Environmental Conditions

Engineers should also consider:

• Temperature range
• Dust exposure
• Humidity
• Vibration
• Mechanical shock

Sealed potentiometers are preferred in automotive and industrial environments.

PCB Design Considerations

Choosing the correct component is only half the challenge. Proper PCB implementation also affects long-term reliability.

Important design recommendations include:

Place Away from Heat Sources

Excessive temperature accelerates resistive track wear and may change resistance characteristics.

Protect Analog Signals

Potentiometer outputs often carry low-level analog signals.

Keep routing away from:

• Switching regulators
• High-current traces
• Clock lines
• RF circuits

Proper grounding helps minimize electrical noise.

Provide Mechanical Support

Panel-mounted potentiometers experience repeated mechanical stress.

PCB designers should reinforce mounting areas using:

• Larger pads
• Mechanical support holes
• Secure panel fastening

Consider Accessibility

Calibration trimmers should remain accessible after assembly.

Poor placement can significantly increase maintenance time.

Manufacturers such as PCBMASTERfrequently review adjustable-component placement during design-for-manufacturing (DFM) analysis to improve assembly efficiency and long-term product reliability without introducing unnecessary production complexity.

Common Design Mistakes

Even experienced engineers occasionally misuse adjustable resistive components.

Some of the most common mistakes include:

• Using a potentiometer when only a rheostat is required
• Ignoring power ratings
• Selecting the wrong resistance taper
• Placing analog adjustment circuits near noisy switching supplies
• Forgetting to secure the unused terminal when configured as a variable resistor
• Assuming every potentiometer is suitable for high-current applications

Most of these issues can be avoided by understanding the intended electrical function before finalizing the schematic.

Future Trends

Adjustable resistive components continue to evolve alongside modern electronics.

Several industry trends are shaping future designs:

• Greater adoption of digital potentiometers
• Improved conductive polymer materials
• Higher reliability for automotive electronics
• Smaller surface-mount packages
• Better environmental sealing
• Integration with intelligent calibration systems

As electronic products become increasingly connected and software-defined, digital adjustment methods are replacing mechanical controls in many applications. Nevertheless, traditional potentiometers remain indispensable wherever intuitive manual control, low cost, or straightforward analog adjustment is required.

For engineers developing reliable PCB assemblies, selecting the appropriate adjustable resistor—and integrating it correctly into both the schematic and PCB layout—remains a fundamental aspect of robust hardware design.Companies such as PCBMASTER continue to support these engineering challenges through PCB manufacturing and assembly services that emphasize manufacturability, component compatibility, and consistent production quality.

Frequently Asked Questions

Is every potentiometer a variable resistor?

A potentiometer can function as a variable resistor when only two terminals are used. However, when all three terminals are connected, it operates as a voltage divider.

What is the difference between a rheostat and a potentiometer?

A rheostat is a two-terminal adjustable resistor designed primarily for current control, while a potentiometer is a three-terminal device intended for voltage division. Many potentiometers can be wired to act as rheostats within their power limits.

Which taper should I choose?

Linear taper is generally preferred for calibration, sensing, and instrumentation, whereas logarithmic taper is the standard choice for audio volume controls because it better matches human hearing.

Can a potentiometer handle high current?

Most standard potentiometers are intended for low-power signal applications. High-current circuits typically require rheostats or power-rated adjustable resistors designed for greater power dissipation.

Why is the unused terminal sometimes connected to the wiper?

Connecting the unused terminal to the wiper provides a fail-safe path if the wiper momentarily loses contact with the resistive track, improving reliability in vibration-prone or industrial environments.
