Switching AC Amplifier

Incomplete CircuitsIncomplete Circuits wrote 10/16/2020 at 01:05 • 1 min read • Like

This is my attempt at making a switching AC amplifier:

I learned from this link:

electriccircuits.yolasite.com

The is issue with this circuit is that the amplifier is not amplifying the input signal properly.

Output transient:

Too much power is lost during capacitor discharge.

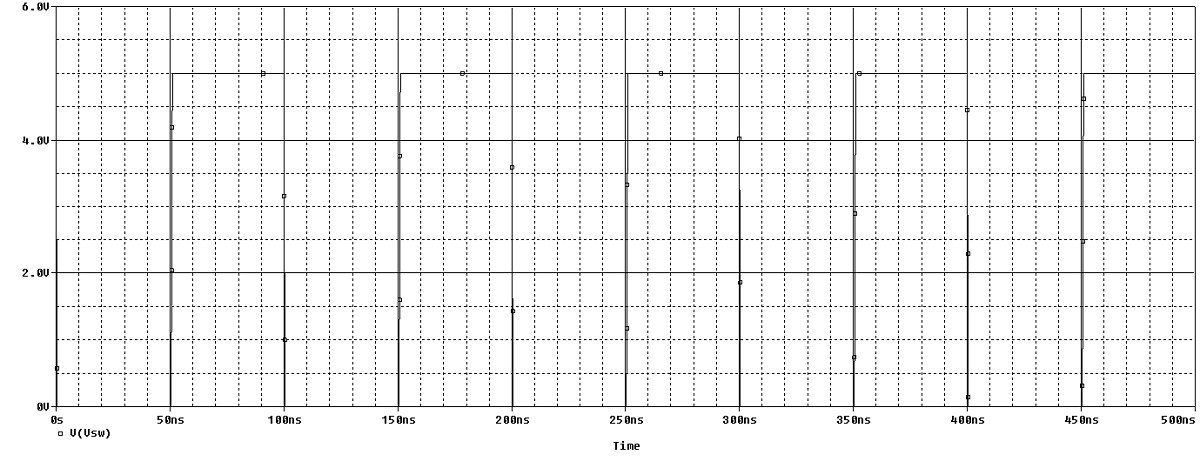

Switching of the pulse generator:
