New prototypes on the way!

A project log for MockA65xx - Universal 6502/85xx CPU replacement

Project to reverse-engineer and create edge-level exact replacements for major MOS6502-derivatives and also other MOS/CSG chips!

androSIDandroSID 02/25/2020 at 14:300 Comments

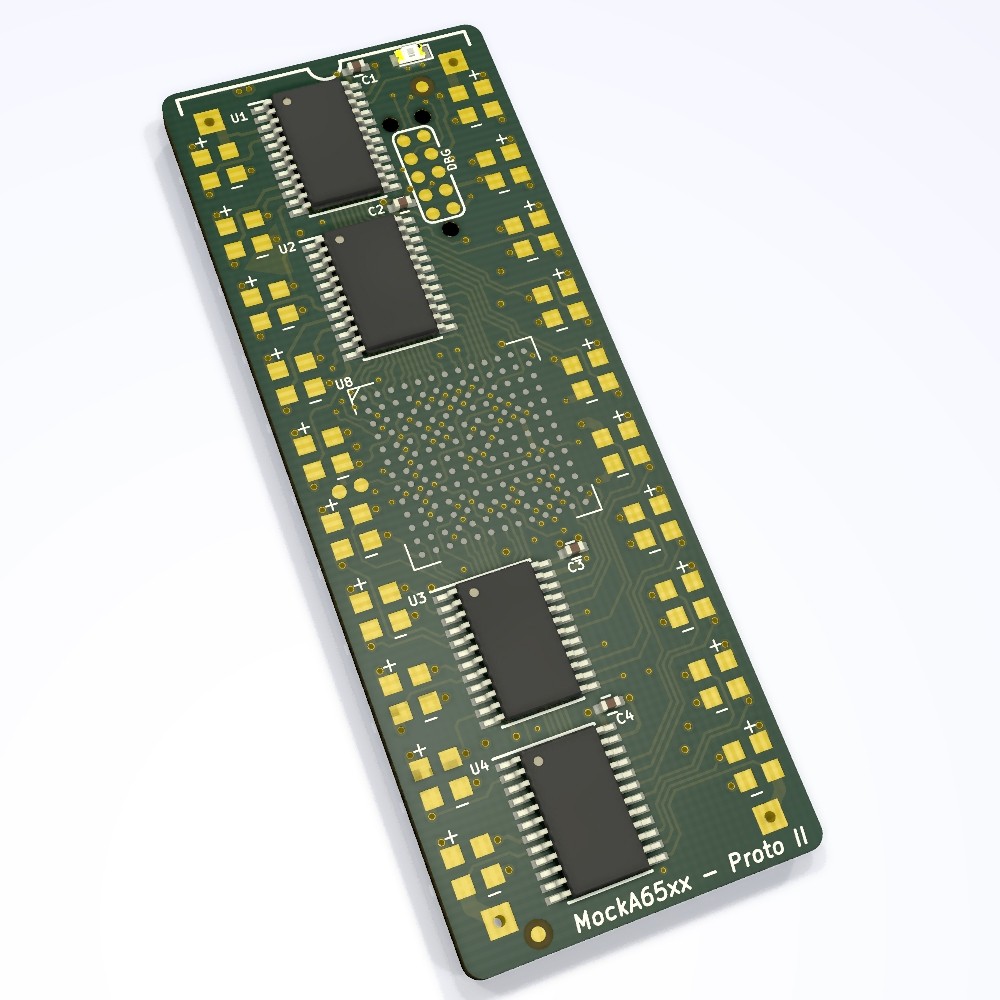

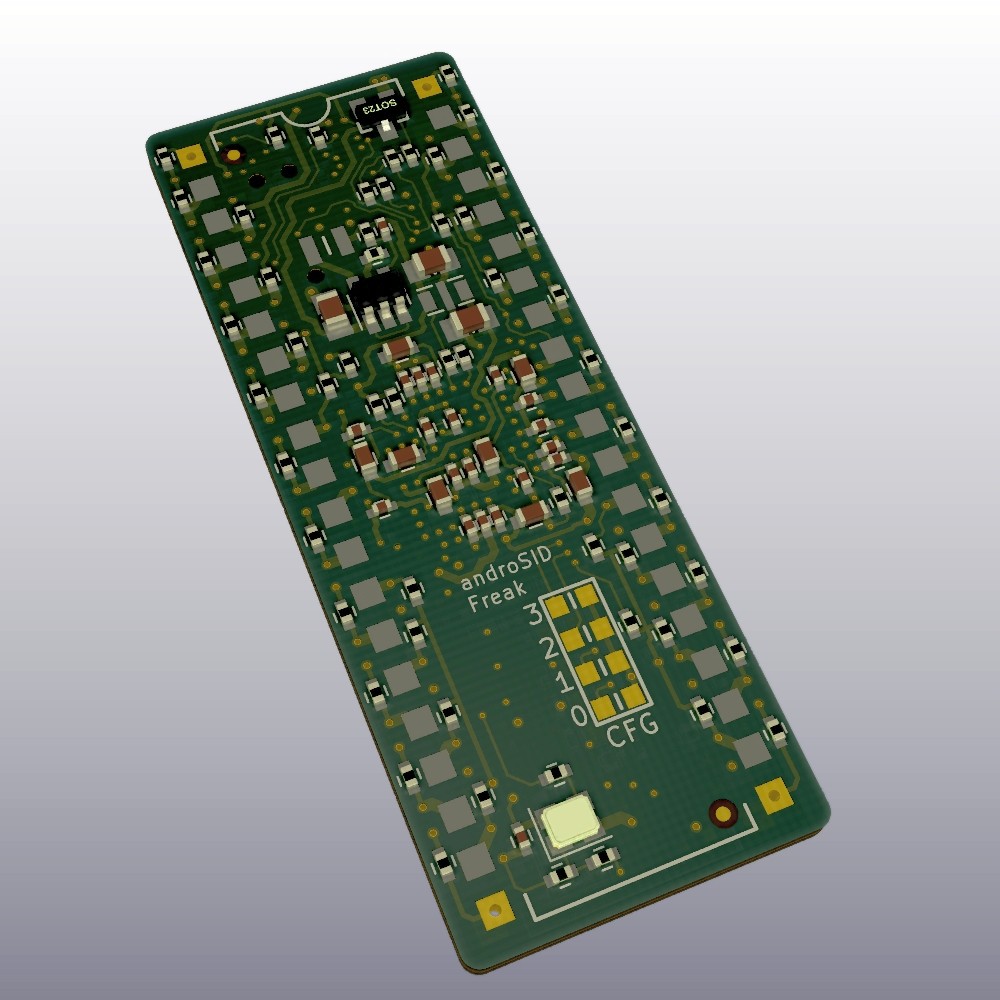

Finally my buddy Thomas found the time to work on the layout for the next prototype :

Though it's not obvious this was REALLY hard work. The 4-layer PCB is very tight and by example moving the DEBUG port inwards took several days...
