Data Logger Device is used to record data in the onboard memory card using UART ports. The Key function of this device is, it is very handy and can store up to 64GB of data.

Features:

  • Input voltage 3.3V - 5V
  • The memory format is FAT32 and supports up to 64GB of memory.
  • UART serial interface
  • Adjustable baud rate
  • The default bootloader is pro mini Atmega328P 5V 16MHz.

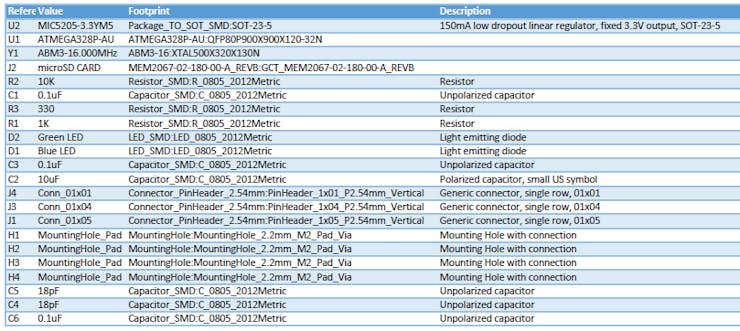

BOM (Bill Of Materials)

BOM

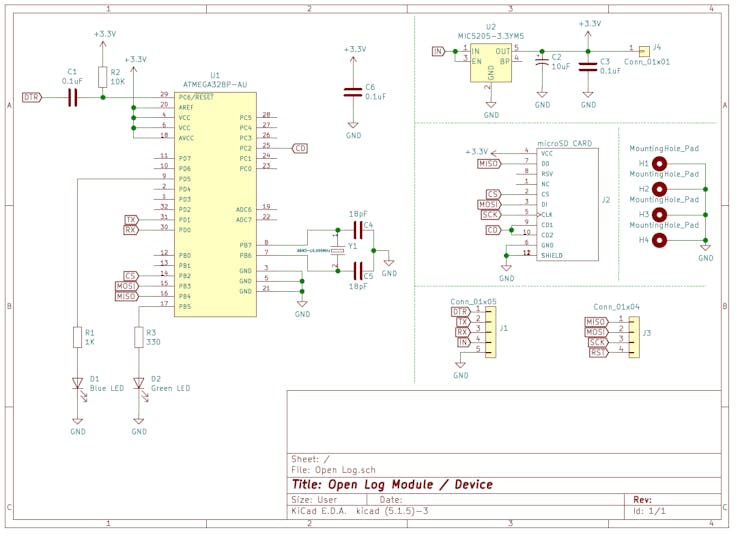

Schematics

Schematics

Footprints

Top Layer

Top Layer

Bottom Layer

Bottom Layer

For the Gerber File, Follow and message us on

YouTubehttps://www.youtube.com/channel/UC8mQvRi15t0JOyzw6GYtnMA

LinkedInhttps://www.linkedin.com/in/technical-avant-garde-2761261b0/

Instagramhttps://www.instagram.com/technical_avantgarde/

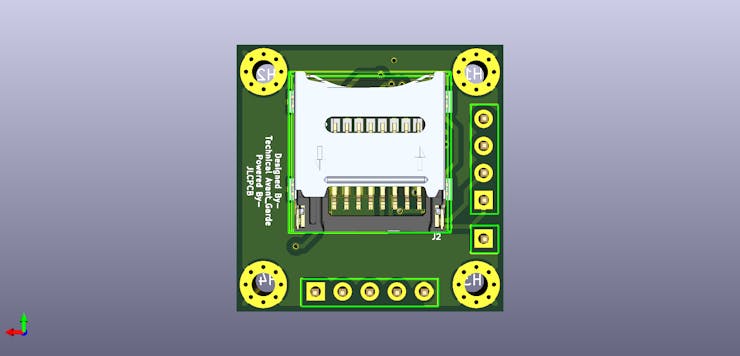

3D Design

Top View

1 / 2 • Top View

Bottom View

1 / 2 • Bottom View

Ordering the PCBs From JLCPCB

Full Process is shown using Screenshots Step-wise.

Now we have got the PCB design and it’s time to order the PCB’s. For that, you just have to go to JLCPCB, and click on the “QUOTE NOW” button.

JLCPCB is also a sponsor of this project. JLCPCB (ShenzhenJLC Electronics Co., Ltd.), is the largest PCB prototype enterprise in China and a high-tech manufacturer specializing in quick PCB prototype and small-batch PCB production. You can order a minimum of 5 PCBs for just $2.

To get the PCB manufactured, upload the Gerber file you downloaded in the last step. Upload the .zip file or you can also drag and drop the Gerber files.

After uploading the zip file, you’ll see a success message at the bottom of the file that is successfully uploaded.

You can review the PCB in the Gerber viewer to make sure everything is good. You can view both the top and bottom of the PCB. After making sure our PCB looks good, we can now place the order at a reasonable price. You can order 5 PCBs for just $2 but if it’s your first order then you can get 5 PCBs for $2.

To place the order, click on the “SAVE TO CART” button. My PCBs took 2 days to get manufactured and arrived within a week using the DHL delivery option. PCBs were well packed and the quality was really good.
