SunBurst Sting OSCILLATOR

Description

Subcircuits •1 x 556 Timer(multivibrator oscillator + monostable mode) •1 x 555 Timer (LFO) •1 x Transistor (Fuzz) Fuzz Stinger • Classic Atari Punk Console with a 556 Core and 555 timer L.F.O • Atari Smash Button for those moments of gritty smashing • Drone Switch for Some constant BUGGY BEE BUZZing • LFO Switch Low Frequency Oscillator Switch for some extra modulation • EuroRack Patchable with Punk CV, LFO CV, , APC Output • Dip Switch Light Controlled Pitch, PulseShaper, LFO Frequency. •Touch pads for controlling LDR resistance by Touching Front Honey Hive Comb .

Details

Subcircuits
•1 x 556 Timer(multivibrator oscillator + monostable mode)
•1 x 555 Timer (LFO)
•1 x Transistor (Fuzz) Fuzz Stinger

• Classic Atari Punk Console with a 556 Core and 555 timer L.F.O

• Atari Smash Button for those moments of gritty smashing

• Drone Switch for Some constant BUGGY BEE BUZZing

• LFO Switch Low Frequency Oscillator Switch for some extra modulation

• EuroRack Patchable with Punk CV, LFO CV, , APC Output

• Dip Switch Light Controlled Pitch, PulseShaper, LFO Frequency.

•Touch pads for controlling LDR resistance by Touching Front Honey Hive Comb .

Project Logs

Collapse

The Panel is Getting Close
Neil Mundt • 02/15/2025 at 05:53 • 0 comments

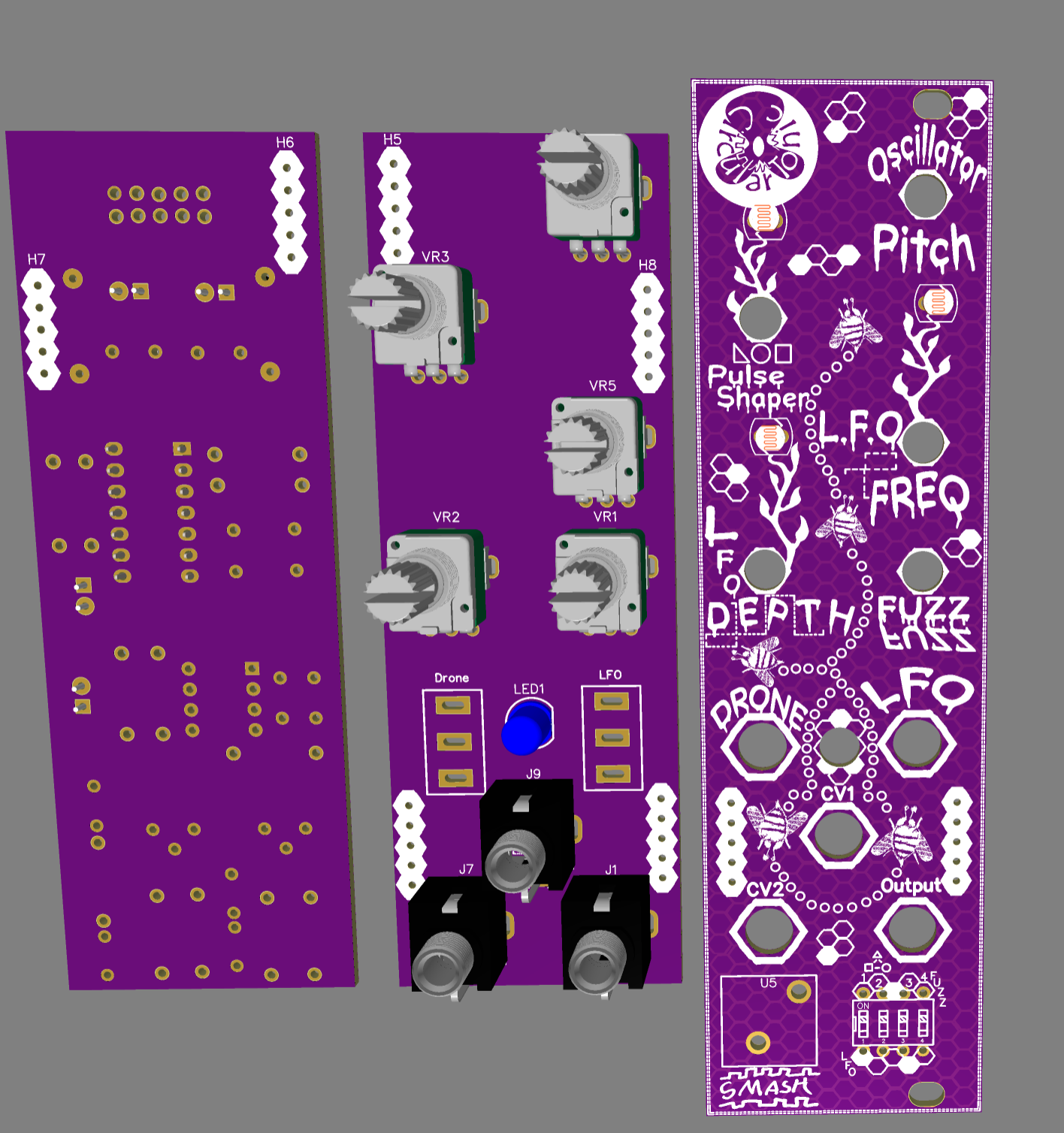

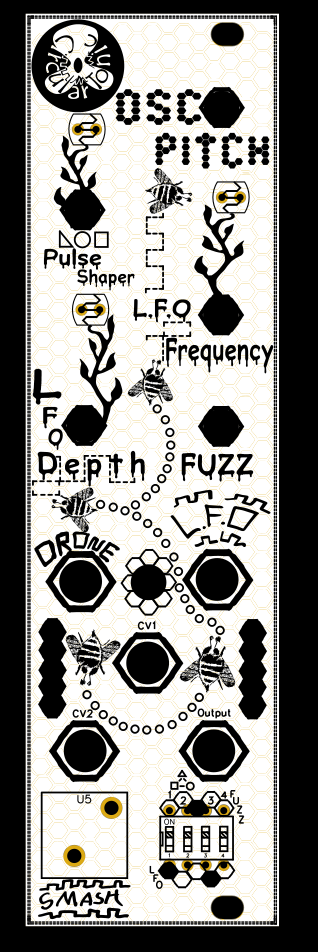

Done the artwork and Re-Vamped the Hexagon BEE Comb Pattern. I really love how it Turned out for my Vines Link Eurorack Module . I think I might start with purple PCB for the prototype we will have to see.
Been Re-doing the CoverART
Neil Mundt • 02/14/2025 at 20:36 • 0 comments

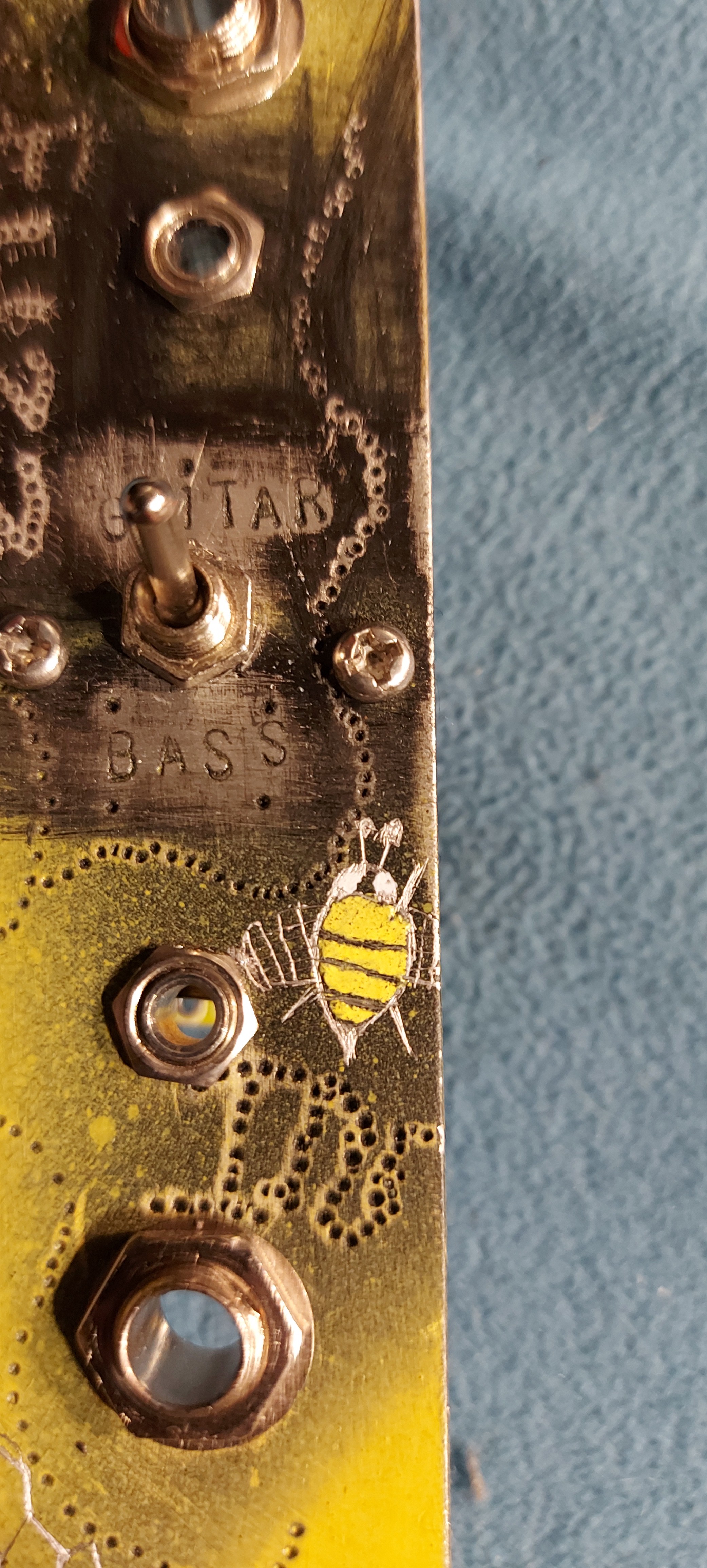

Still a ways to go. But I am touching up the Artwork and Overhauling the layout to be more user friendly. Really liking the Bee Artwork. I drew and touched up from one of my older prototype modules. I didn't really finish that one. But its nice I can use it on this one.
Getting Very Close too a Final Layout
Neil Mundt • 01/18/2025 at 00:23 • 0 comments

Getting Pretty Close to A final Layout. Once I do that Just need to update the schematic and Art a little bit. I wanted this to be a good starter kit to do with a low parts count and Circuit sections labelled for Learning.
Been Re-configuring the Layout
Neil Mundt • 11/27/2024 at 04:23 • 0 comments

I have had the Design choice add FUZZ or mini FUzz option. Chose full FUZZ need to Redesign the Panel to have a Fuzz amount Knob in a biggie version for more choice. So I decided to make it a 7Hp Module oscillator. I think it will be a very interesting take on the atari punk console Oscillator with a FUZZy Twist. We all Bees here and not wasps Right... Still need to add the finishing touches but I think I Got it down.
Prototyping The Final Layout
Neil Mundt • 11/11/2024 at 23:49 • 0 comments

Re-doing the Schematic and figuring out how it is all coming together. Still need to add the FuZZ circuit and another knob potentially. Still need to update footprints add new art and headers. Coming along great. Faster then expected for my first module.
WIP Layout For the module 0.1v
Neil Mundt • 09/28/2024 at 21:26 • 0 comments
