Tesla Model 3 Y Drive Unit Open Source Logic Board

Developing an open source logic board to run the Tesla Model 3 Y drive units.

damien-maguireDamien Maguire
Following
Liked Like project

Just one more thing

To make the experience fit your profile, pick a username and tell us what interests you.

Pick an awesome username
hackaday.io/
Your profile's URL: hackaday.io/username. Max 25 alphanumeric characters.
Pick a few interests
Projects that share your interests
People that share your interests

We found and based on your interests.

Choose more interests.

OK, I'm done! Skip
Public Chat
Similar projects worth following
909 views
0 comments
6 followers
View Gallery
Public Chat
For almost 5 years now I've been working on a solution to provide an open source control system for the Tesla Model 3 / Y drive units. A few years ago I started the project to reverse engineer parts of the original Tesla OEM board like the gate driver and blend it with some OpenInverter goodness. Thanks to a good friend collaborating on the project this year it's picked up some speed. Design is being done using Kicad 8. Now updated to Kicad 9 and project now fully opensource : https://github.com/damienmaguire/Tesla-Model-3-Drive-Unit/tree/master/Design/M3DU_BoardV3_2

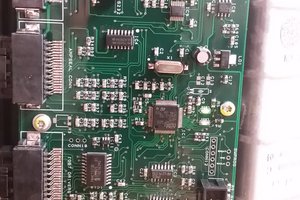

V3.2 board fully installed in inverter.

JPEG Image - 1.79 MB - 03/08/2026 at 12:23

Preview


It even fits:)

JPEG Image - 1.36 MB - 05/07/2025 at 08:35

Preview


First prototypes arrive.

JPEG Image - 1.80 MB - 05/07/2025 at 08:33

Preview

Screenshot from 2025-01-09 15-17-36.png

Done:) well, at least it passes DRC. Who know if it will work...

Portable Network Graphics (PNG) - 1.26 MB - 01/09/2025 at 15:29

Preview
