Description

I wanted to Design good Interface for use when Playing and Designing Euro-rack and related Synth Circuits on Bread Board. When making these projects. I found out pretty quickly while prototyping that it is always useful and most of the time need more jacks. Prototyping and Combining it with The Euro-rack Power Rail system it is a pretty nice idea and addition to this series . It is quite a bit easier to use a Adaptor PCB common components with a PCB. These Can be used Interchangeability with other Styles since they were made for Breadboard Spacing. These

Details

Features

-Breadboard Compatible
-Uses common Style Euro-rack PJ301/PJ398 (3.5mm) for a Input and Output interface with the Bread Board prototyping Synth Related Circuits.
-Jumpers for Connecting 3.5mm to the CV/Gate Bus on the Power Connector
-Small Silkscreen place to write what the type of Input/Output Jack is Labeled
-Diode Protection for Reverse Polarity
-LED for Voltage Indication for +12v rail, -12v and +5v Rail
-+12v, -12v and +5v Rail Headers for Power
-3m Built in PCB Screw mounts. So you can mount it on wooden base for a more Firm grip.
-Standard Filter Capacitors for Power rails for Synth Circuits

Project Logs

Collapse

Another Fancy Blender GIF
Neil Mundt • 11/26/2025 at 02:21 • 0 comments

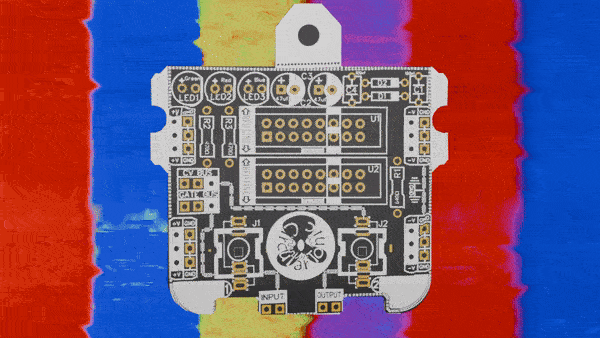

Well here is other Spicy Blender Render. I am getting the Hang of it now. UV modelling and properly outlining the PCBs with minimal topology errors. Pretty fun using these as practice Next Goal is making some walk cycles or Cats Dancing. All Hail Blender.
Ordered Some Prototype Boards Thanks to PCB way.
Neil Mundt • 03/18/2025 at 23:42 • 0 comments

I still gotta make some Tweaks on the PCB Layout. But it Turned out pretty well.
Really Lucked out on the Photo For the PCB
Neil Mundt • 02/19/2025 at 01:48 • 0 comments

I really lucked out on taking this photo of a transmission line. It Just feels perfect angle for a project like this.
Made Pretty Much the Final Version.
Neil Mundt • 02/19/2025 at 01:37 • 0 comments

Been Bug Pining the euro rack power connector in my Patch Mates Series. I am getting really close to ordering some prototypes. I like kinda getting used to this method of papercraft. Makes making adjustments very quick for prototyping.
