Project Logs

Collapse

• Some Photos of the First Assembled Prototype.

  Neil Mundt • 03/16/2025 at 20:53 • 0 comments

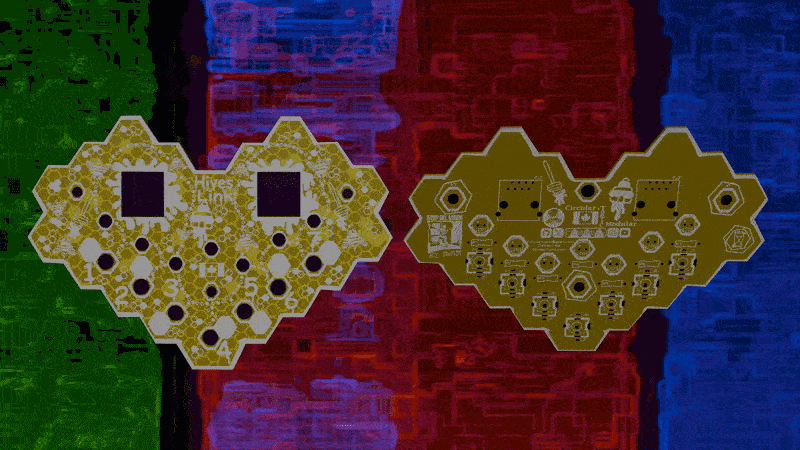

• Blender PCB Animation

  Neil Mundt • 03/01/2025 at 21:36 • 0 comments

• The Artwork Is pretty Much Complete now

  Neil Mundt • 02/24/2025 at 17:07 • 0 comments

  Really Glad I went with Honey Drip as a theme. Sometimes less is more it kinda was getting (Hexagon galore) before, but I think it adds quite a bit to it. Really looking forward to getting some to test. This one is going to be THT components because they are easier to solder and handle. My VinesLink Module is nice using the SMD components. But they can get a little Fiddly. I could add a optional SMD var-taint since I have the footprint and adding it would not be much extra work.

• Panel Artwork is Almost Done

  Neil Mundt • 02/23/2025 at 03:10 • 0 comments

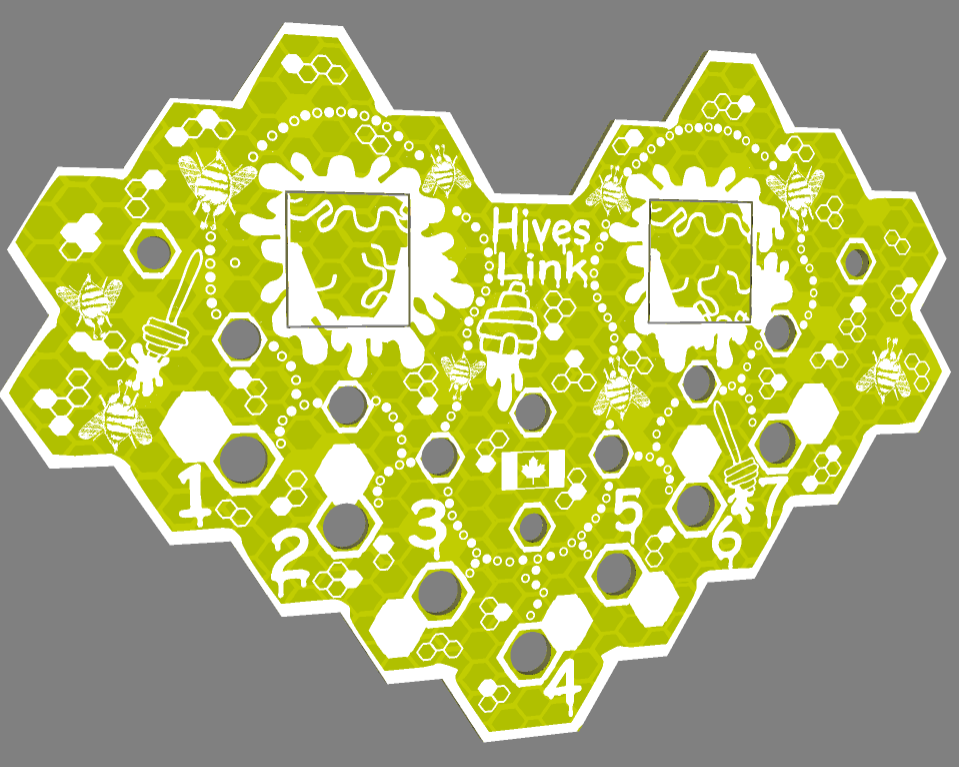

  It is just going to be 2 PCB sandwiched together as a standalone unit. It will be Textured with hexagons on one of the copper layers. Similarly like my Vines Link Module. I think it Turned out pretty great. Looking forward to get some prototypes soon. Until then I got some more modules to assemble. Added the Silkscreen Hexagons Last Minute and I think the layout is decent for Labelling like VinesLinks. Might aswell have it as a option to save someone the hassle of using tape. Also Would like to mention the Front Used is Honey Dripper By someshinzz I was thinking for using a Hexagon Font but some of the Numbers were hard to tell what they were.

View all 4 project logs
