Fruitful Blood Orange Chaser

Description

My Second Euro-rack Module, Fruitful Blood Orange Chaser. Is a Module that is aimed to Dynamics to Drums Patterns or CV by using this Switchable Bus that can Add or Subtract Voltages into 8 Bidirectional Jacks. Like Oranges Splitting signals and combining each slice into the mix of Signals. Features -8 Bidirectional Jacks (Input/Output) - Mute Each Jack - Each Jack is Switchable Between Bus 1 and Bus 2 - Add Dynamics to Drums Patterns or CV by using this Switchable Bus So you can Transport those Variations to where they need to go or to add variation to CV signals that are Switchable for those Euro-rack Chaos Beep and Bloopers. -2 x Channel Bus for Signal switching and adding CV/Audio Signals -Mute on each Input for adding Kookiness sound or variation to Drum CV - Jack has a LED Mandarin Orange to indicate Flashy Blood Oranges on PCB Silkscreen.

Details

Features
-8 Input/Output
- Mute Each Jack
- Each Jack is Switchable Between Bus 1 and Bus 2
- Add Dynamics to Drums Patterns or CV by using this Switchable Bus to Transport those Variations
-2 x Channel Bus for Signal switching and adding
-Mute on each Input for adding Kookiness sound or variation to Drum CV
- Jack has a LED Mandarin Orange to indicate Flashy Blood Oranges

Files

Schematic_Blood-Orange-Path-switcher_2025-04-12.pdf

Adobe Portable Document Format - 84.24 kB - 04/13/2025 at 05:12

Preview

Project Logs

Collapse

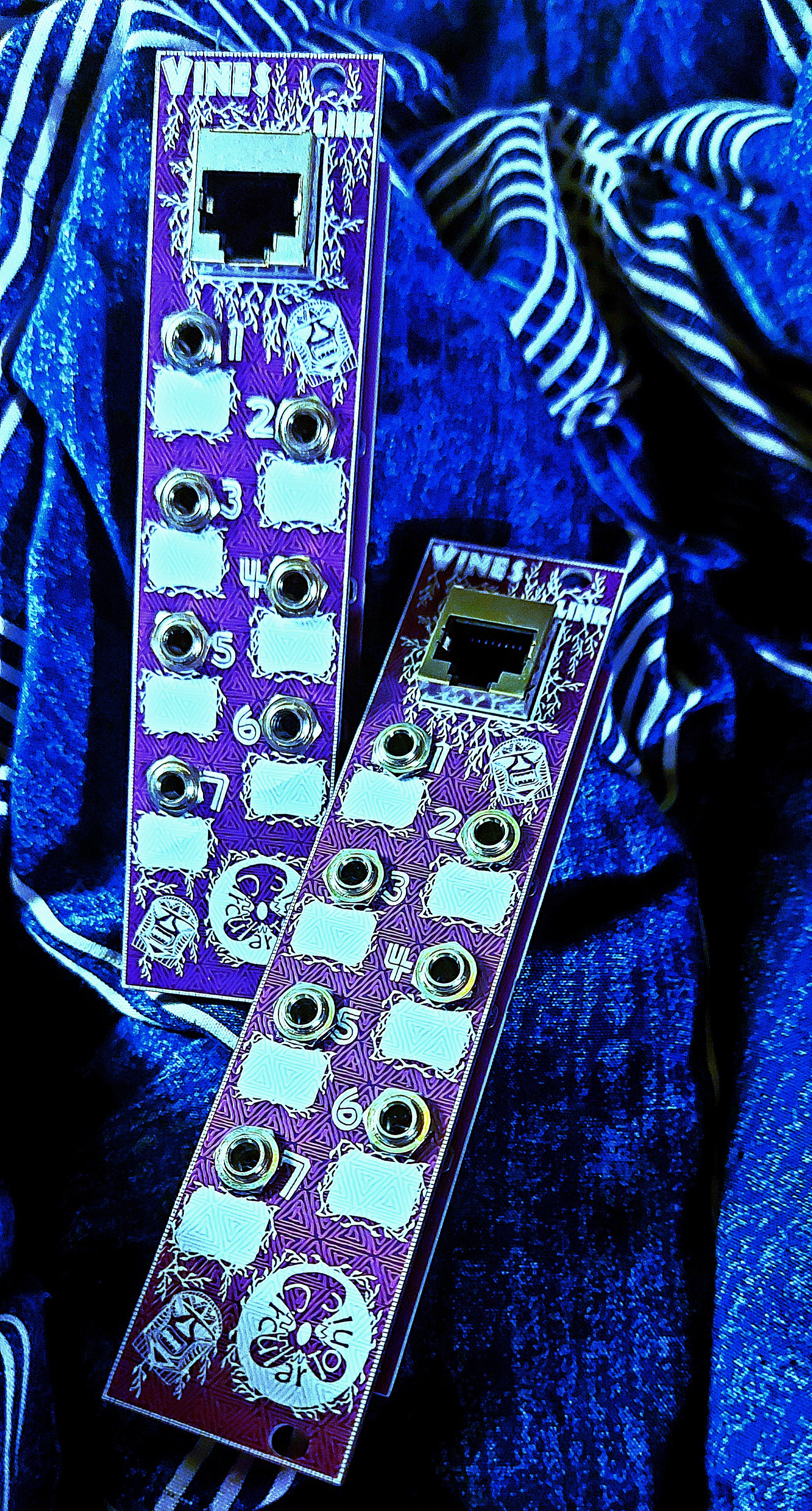

Just some Prototypes Photos with this lovely Quilting Background
Neil Mundt • 01/12/2026 at 00:56 • 0 comments
Coin Cell Test lime??
Neil Mundt • 05/12/2025 at 22:54 • 0 comments

Been testing the prototype. It's Working okay just need to adjust some artwork and add a few things to the schematic. I might clean up the panel JUST A TAD. Might go back to a more simplistic look. Also going to do some with Red and Green LED's. It adds Lime and citrus to the mix.
Final Version of the Front Panel
Neil Mundt • 04/12/2025 at 19:08 • 0 comments

My Grandfather used to love to garden and among some of this stories. One of his Favourite fruits is called the Blood Orange. Know for its Hardiness as a plant and The Darker Blood coloured oranges that tastes like the Slightly sweeter orange. Often it is compared to the raspberry in sweetness and taste. Which my Grandfather was Very fond of
New Front Panel Design
Neil Mundt • 04/09/2025 at 20:36 • 0 comments

Just Need to Finalise the Graphics and Do the Transparent Part of the PCB. I really liked how it turned out the
The layout is coming along
Neil Mundt • 03/21/2025 at 23:03 • 0 comments
