T113/RK3506+XC6SLX drives multiple LCD screens Gallery

created by ElecLab • 08/25/2025 at 09:00

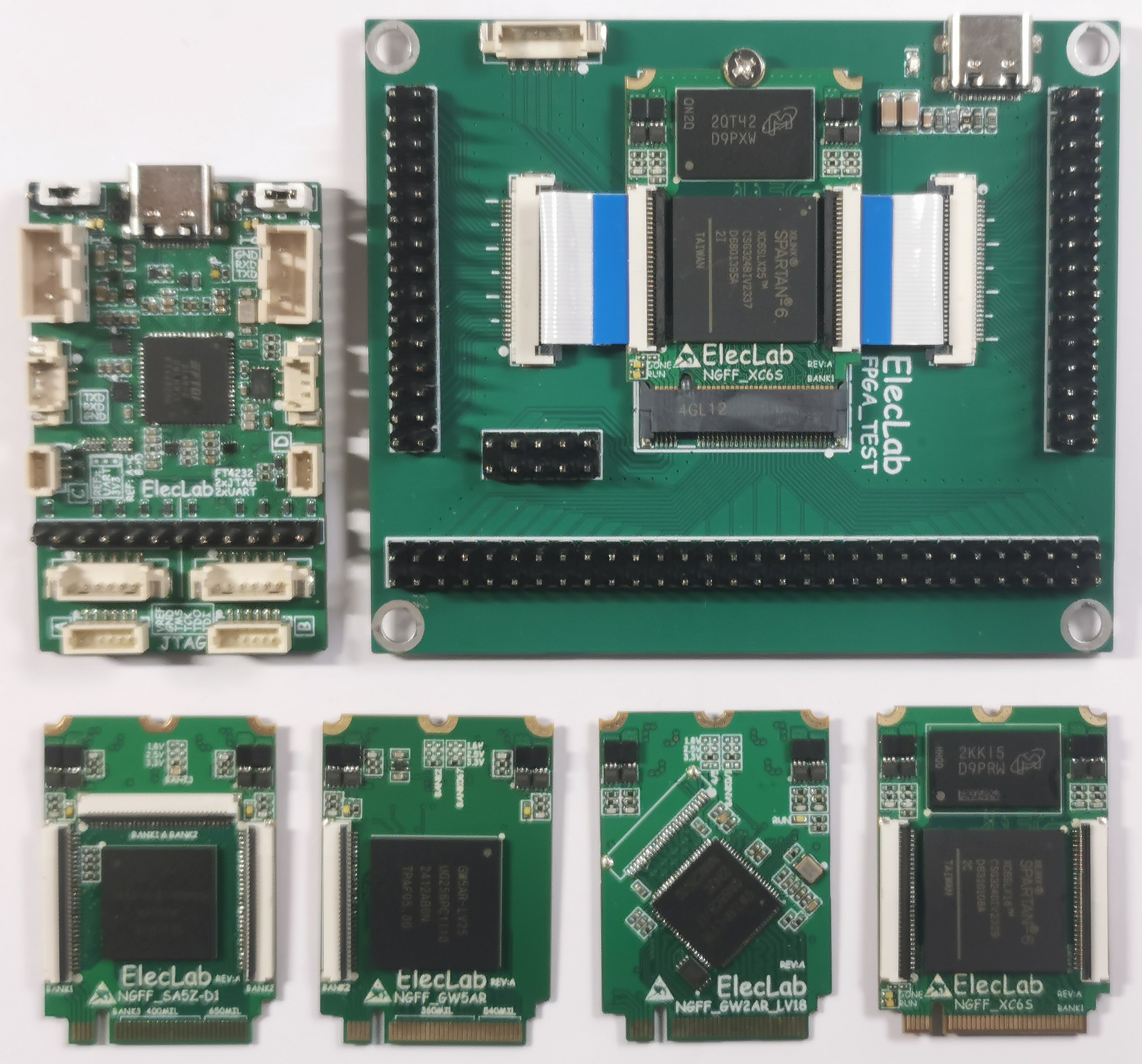

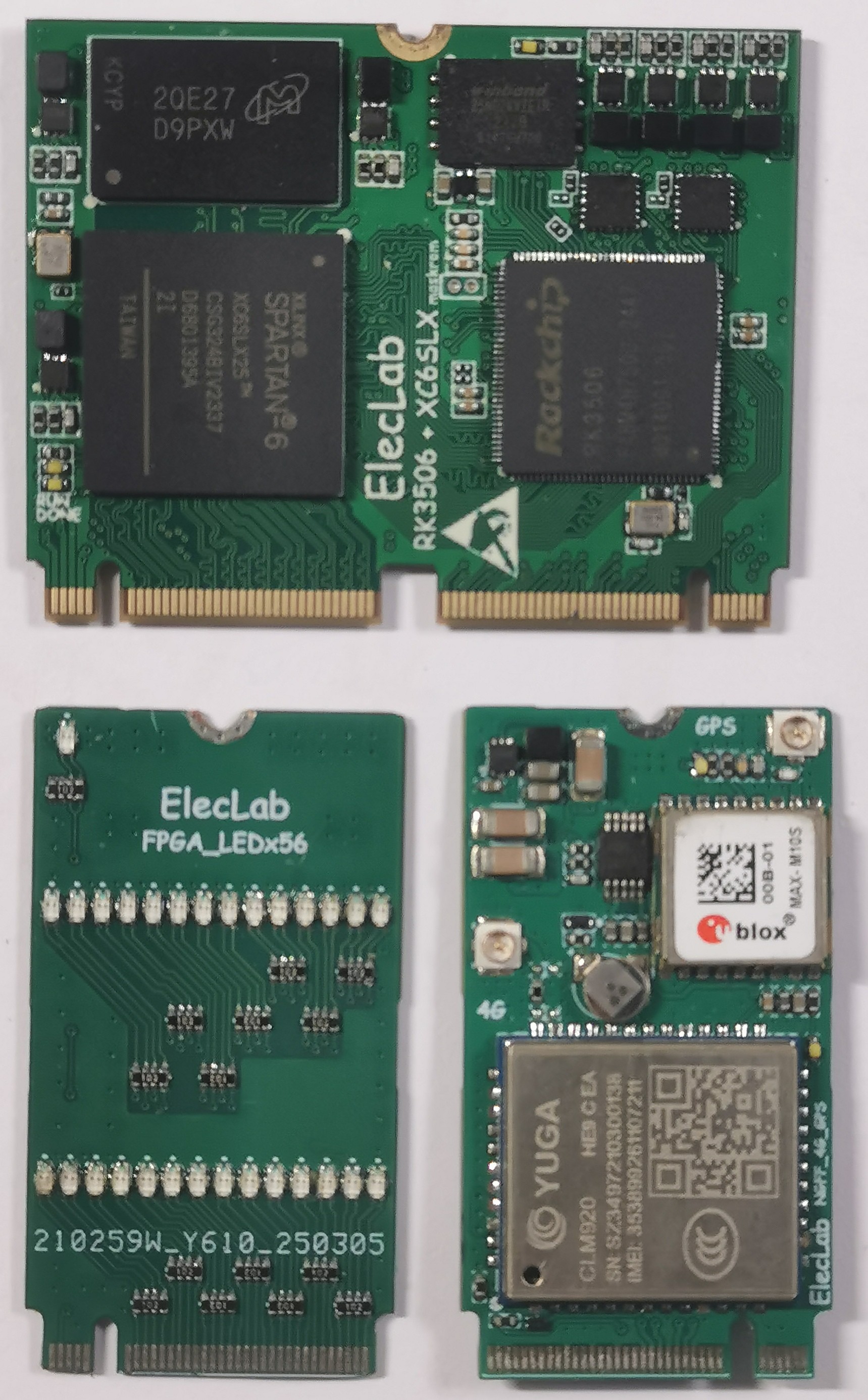

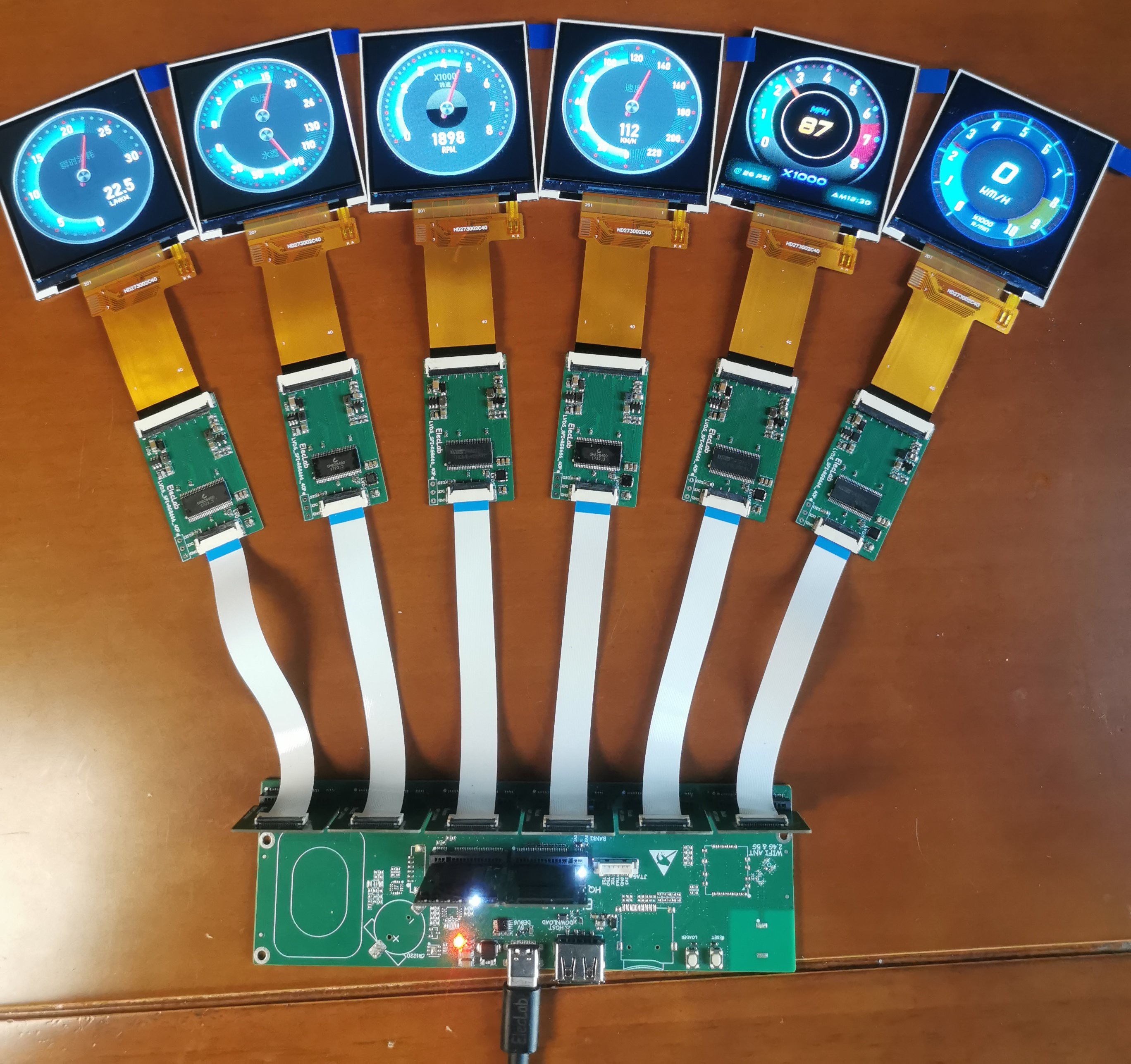

Use T113-S4/RK3506G2+XC6SLX25+512M DDR3 to divide the video data of framebuffer into 6 outputs from lvds. 6 displays use GW1NSR-LV4CQN48.
