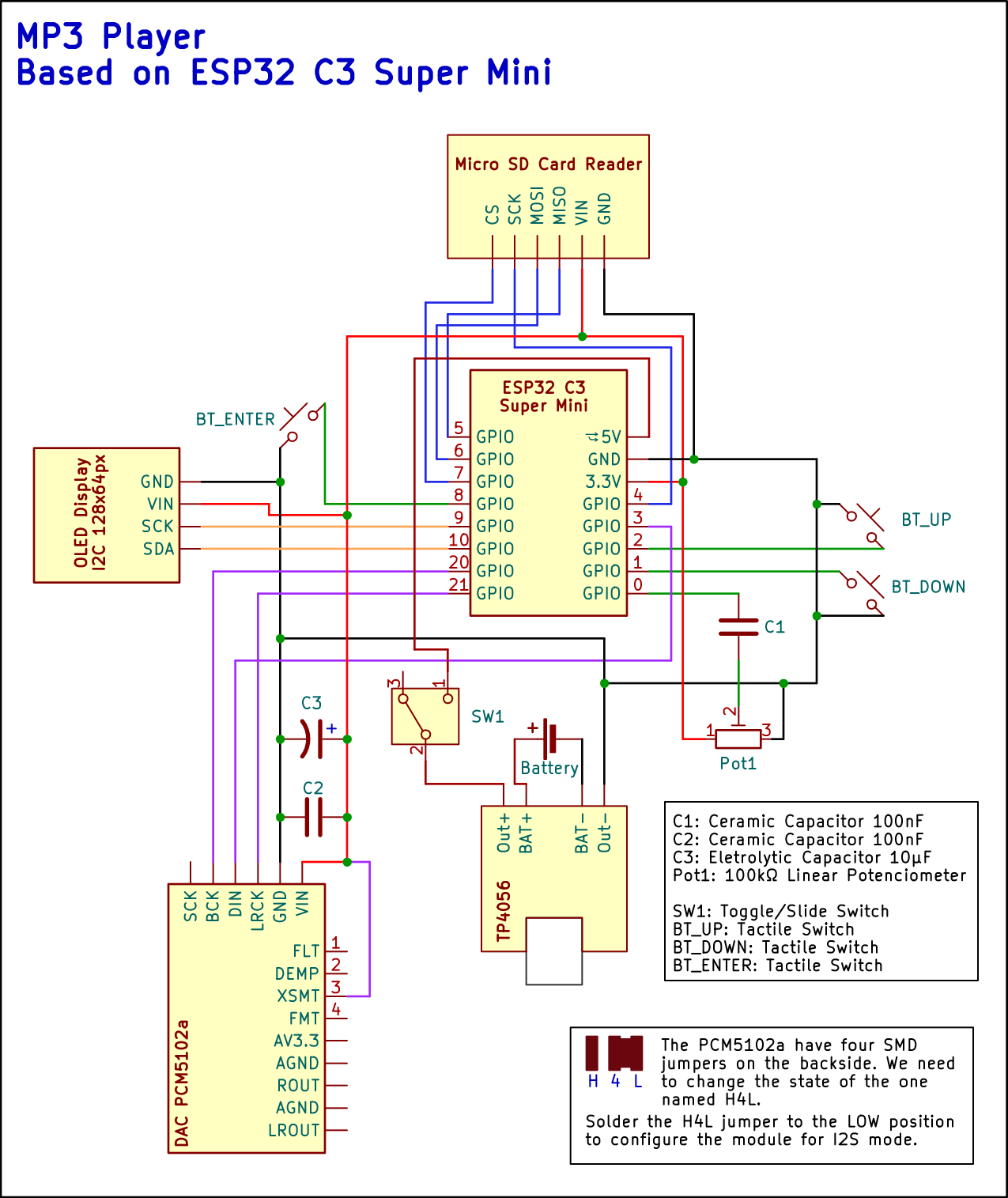

    Here is the schematics for the wiring:

    Controls

    • Pin 0: Potenciometer
    • Pin 1: Button Down
    • Pin 2: Button Up
    • Pin 8: Button Enter

    DAC

    • Pin 3: DIN
    • Pin 20: BCK
    • Pin 21: LRCK
    • Jumper H4L on LOW State
    • XSMT (3) on VIN

    SD Card Module

    • Pin 4: SCK
    • Pin 5: MISO
    • Pin 6: MOSI
    • Pin 7: CS

    OLED Display

    • Pin 9: SCK
    • Pin 10: SDA
